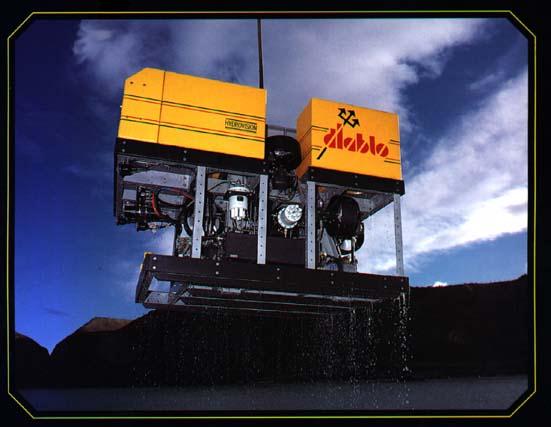

FRAME

3 Tonnes through frame lift at 3G.
Bolted channel section construction around central welded aluminium frame.
Variable 6 positions lift point.
4 point skid attachment.
Bump protection on outer frame.

BUOYANCY

6 piece construction for easy removal.
1000 metre rated (2000 metre option).
Optional additional centre core buoyancy block.

PAYLOAD

100 Kg standard. (Additional if required)

PERFORMANCE

6 off HT300 CURVETECH thrusters providing: -

Speed in excess of 3.0 knots.

HYDRAULIC SYSTEM

CURVETECH power pack.
Optional dual ended pump system.
100 Hp (shaft) 3000 volt, 3 phase 4 pole.
CURVETECH Thruster Control Unit (TCU).
6 off 77 lpm servo valves and 2 spare.
Integral system relief, soft start and temperature sensor.
Auxiliary Control Unit (ACU).
12 proportional valves with pilot/checks and relief's.
Pressure compensated reservoir assembly with integral LP manifold and filter.
12 function Quick Disconnect Panels. HYDROVISION Compensators throughout (1 and 2.5 pint units).

DIMENSIONS

CONTROL SYSTEM

96 channel capability Mux system.
INTEL 486 based topside control unit.
Integral diagnostics.
14" Colour graphics display.
Auto heading +/- 2 degrees.
Auto depth +/- 150 mm.
Pitch and roll sensors with digital and analogue displays.
Full programmable alarm system.
Auto depth with bathymetric system.

CAMERAS

Up to 5 simultaneous camera capability.
Optional Fibre video transmission.

LIGHTING

5 variable intensity 250 watt lights as standard.

POWER REQUIREMENTS

(Typical 100Hp system)
180 KVA (min) 380-480 volts 3 phase 60Hz.
