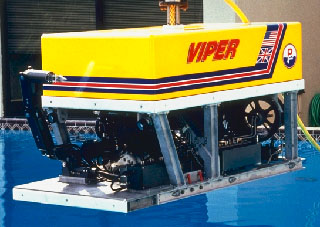

The VIPER is a 25 shp hydraulic ROV system designed to provide a high powered, small sized vehicle for drill support, general subsea construction, inspection and maintenance tasks. The vehicle's high thrust and low weight allow it to work in high currents (greater than 3.0 knots) and the small footprint of the VIPER is an important feature for drill rig work. VIPER's PC/STD32 486-based control system is a cost effective, easily supported and maintained system with high reliability and performance.

Applications

The VIPER is able to be rapidly deployed and can perform a wide variety of tasks, including:

• Drilling Support
• Offshore Construction Support
• Pipeline / Cable Inspection
• General ROV "Call Out" work

Specifications: (subject to change without notice)

• Depth capability: 1,000 meters
• Max. Speed at Operating Depth
• Forward: 3.2 knots
• Vertical: 2.0 knots
• Lateral: 2.0 knots
• Turning Rate: 70 deg. per second minimum
• Vehicle Dimensions:
• Height: 167 cm (44 in.)
• Width: 104 cm (41 in.)
• Length: 206 cm (81 in.)
• Weight in air: 1,000 kg (2,200 lbs.)
• Payload Capability: 170 kg (375 lbs.)(minimum in seawater)
• Propulsion System:
• (1) 25 shp Electro hydraulic power unit.
• 2,300 Vac, 3-phase, 60 Hz
• (2) Off-axial Thrusters, 300 lb. max. thrust each
• (1) Lateral Thruster, 300 lb. max. thrust
• (1) Vertical Thruster, 300 lb. max thrust
