300 Class Heavy Work ROV Systems

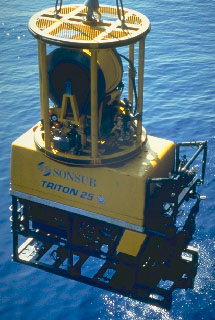

Triton® Heavy Work ROV System

Since its introduction in 1985 the TRITON® ROV system has dominated the offshore work market. TRITON® ROV systems can be found operating worldwide, and are frequently specified by offshore oil companies for their ability to get the job done in a demanding environment. State-of-the-art technology, durable field components and subsystems and an extensive track record of on the job reliability and performance have enabled the TRITON® ROV system to set the standard by which all other heavy work ROV systems are judged.

Applications

Easily configured with a variety of work packages, industry standard manipulators, sensors and cameras, TRITON® ROV systems can be adapted to a wide variety of tasks, including:

• Drilling Support
• Offshore Construction Support
• Platform Cleaning
• Subsea Cable Burial and Maintenance
• Deepwater Salvage
• Oceanographic Survey
• Deepwater Remote Intervention
• Override Tool Deployment

Specifications: (subject to change without notice)

• Depth capability: 1,000 meters (Optional depth ratings to 6,000 meters)
• Max. Speed at Operating Depth
• Forward: 3.0 knots
• Vertical: 1.0 knot
• Lateral: 1.7 knots
• Turning Rate: 40 deg. per second minimum
• Vehicle Dimensions:
• Height: 160 cm (63 in.)
• Width: 145 cm (57 in.)
• Length: 246 cm (97 in.)
• Weight in air: 2,450 kg (5,400 lbs)
• Payload Capability: 227 kg (500 lbs)(minimum in seawater)
• Propulsion System:
• (2) 50 shp electrohydraulic power units.
• 2,400 Vac, 3-phase, 60 Hz
