300 Class Heavy Work ROV Systems

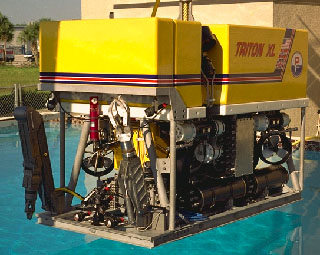

Triton® XL The Most Capable Heavy Work System Available

The TRITON® XL is the next generation of Perry Tritech's flagship product line, the TRITON® ROV. Designed to meet the most challenging heavy work requirements encountered in the offshore oil and gas industry, the TRITON® XL features field-proven technology while achieving quantum improvements in performance, payload and work capacity. Designed to meet the latest offshore industry certification criteria, the TRITON® XL meets DNV design requirements for sea state 6 and the AODC electrical code.

Applications

The TRITON® XL offers the most comprehensive combination of thrust, payload, through-frame lift and sensor interface capacity available in the industry, and supports virtually any offshore heavy work requirement which can be performed by an ROV, including but not limited to:

• Drill Support
• Construction Support
• Platform Cleaning and Inspection
• Subsea Cable Burial and Maintenance
• Deepwater Salvage
• Remote Tool Deployment
• Subsea Pipeline Completion

Specifications: (subject to change without notice)

• Depth capability: 1,500 meters (Optional deeper depths to 6000 MSW available)
• Thruster Configuration: Four horizontal thrusters in quad arrangement provide equi-lateral thrust distribution for strong station-keeping capability in all current conditions.
  Three vertical thrusters in triad arrangement provide pitch and roll control for work during unbalanced load conditions.
• Vehicle Dimensions:
•
  • Height: 193 cm (76 in.)
  • Width: 145 cm (57 in.)
  • Length: 246 cm (97 in.)
• Weight in air: 3,500 kg (7,700 lbs)
• Payload Capability: 500 kg (1,100 lbs) (minimum in seawater)
• Propulsion System:
•
  • (1) 100 shp Electro hydraulic power unit
  • 2,400 Vac, 3-phase, 60 Hz
